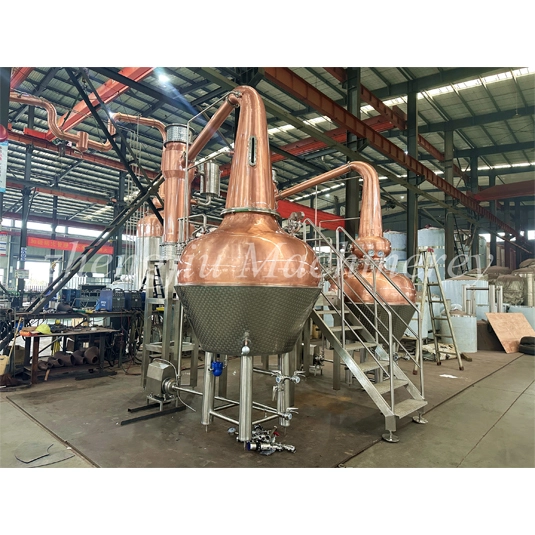

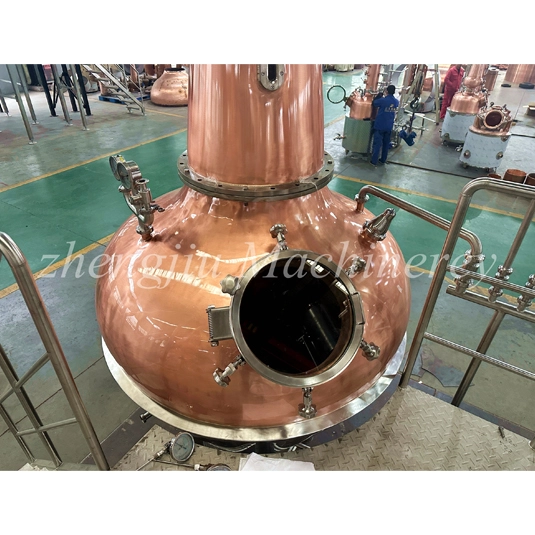

1000L+700L Single Malt Pot Distillation Equipment Distiller For Whisky

This Multi functional distilling system is the perfect option for craft distilleries that want to make a range of spirits without compromising. Install once and never have to reconfigure the system to switch from a whiskey run to a vodka run. Whereas other stills need to be broken down and rebuilt depending on what spirit is being made, switching between spirits on this multi-column still is as easy as opening and closing a few valves. this unit can quite literally make any spirit you desire—brandy,whisky,gin, rum, vodka etc.


Specification

Specification of 1000L+700L Single Malt Pot Distillation Equipment Distiller For Whisky


Item No.ZJWS-1000L+7000L
Product name1000L wash still+700L spirit still
Capacity1000L+700L , customizable
MaterialRed copper TP2, SUS304
Heating MethodElectric heating/Steam heating
Thickness8mm
Distilled productsTo make single malt whisky


Detail

Detail of 1000L+700L Single Malt Pot Distillation Equipment Distiller For Whisky

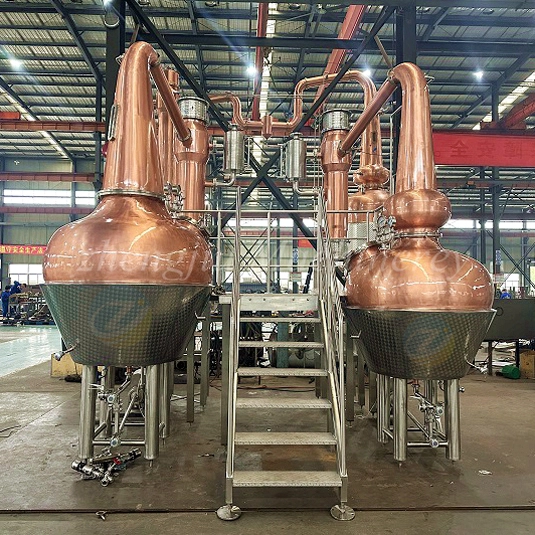

Single Malt Whisky Distillation are typically built with pairs of wash and spirit stills,usually designed so the capacity of the spirit still is in proportion to the output of the wash still.this is often as simple as the output of one wash still perfectly filling one spirit still ,but is could equally be one lager wash still filling two small spirit stills.or the output of two wash stills charging on spirit still.


In this set-up, a Wash Still performs a stripping run where the ethanol present in the wash after fermentation is distilled to collect what’s known as low wines. These are then transferred to the Spirit Still for a second distillation.


Usually a Spirit Still is only about a third of the overall volume of the Wash Still, but this can vary depending on the process being followed.

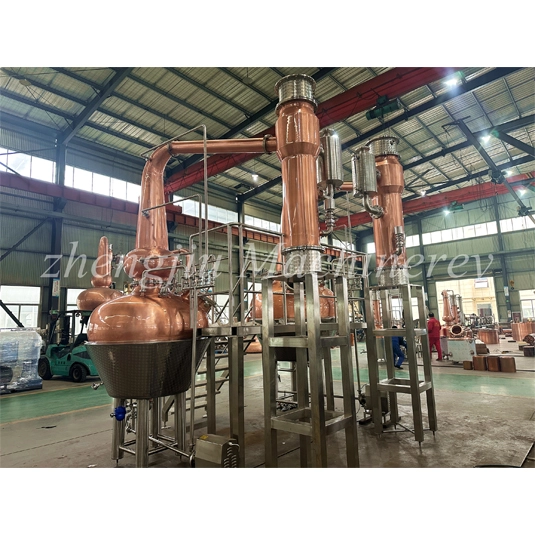

A Dual Pot Still can be built in copper or a combination of copper and stainless steel, and built with various neck designs and lyne arm slopes. If a column is required, it can be built as a single column or split to shorten.




Features

Features of 1000L+700L Single Malt Pot Distillation Equipment Distiller For Whisky

01
01




Like Scotch malt whisky is usually distilled twice,and occasionally three times,using batch distillation in copper pot stills .During the last distillation compounds with the lowest boiling points,called foreshots (or head),boil first.then comes the heart(middle cut),then the feints(tails) leaving liquid called spent lees in the still.its the heart that is collected and aged to become whisky.


First Distillation

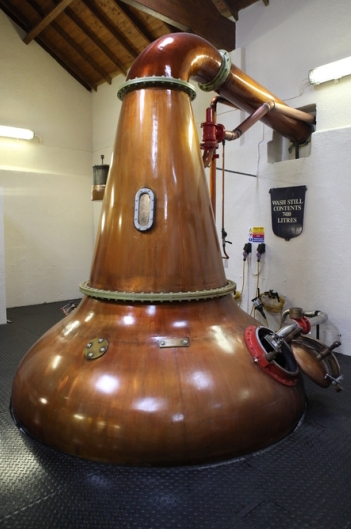

The first distillation takes place in a ‘wash’ still where the alcohol in the wash is separated by heating,because alcohol boils at a lower temperature than water(78.37°C/165°F versus 100°C/212°F) so the spirit vaporises before the water and rises up the neck of the still until the spirit vapour reaches the top and is directed through the swan neck,along the lyne-arm to the condenser.


Second Distillation

The second distillation is the same principles apply as in the first distillation but with more of the water being left behind as the alcohol vaporises up the still ,but as there are no solids in the still to start as these have already been removed by the first distillation,frothing is not an issue,so spirit stills dont have sight glasses in their necks.

In the scond distillation,and sometimes also a third distillation(in the case of Auchentoshan and Hazalburn),the distiller exercises considerable control over the character of the final distillate.The distiller’s art is knowing when to ‘make the cut’.Different flavouring agents evaporate at different temperatures and the distiller has to find the right balance .
