1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still

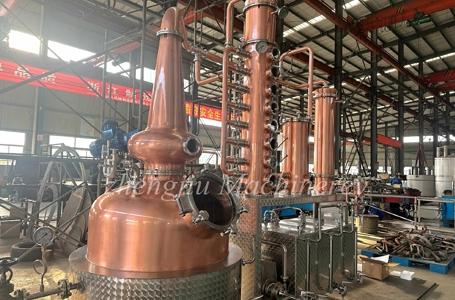

This hybrid still is a combination of a pot still and a column still, which are often linked together with piping, and diverter valves. Turning on or off certain valves permits different process paths, with each path containing its own distillation properties.

Hybrid stills can be used to produce a variety of spirits from whiskey to vodka and gin. The versatility of these hybrid distilling systems has gained them wide popularity among the craft distilling community.


Contact Us
Specification Detail Features
Specification

Specification of 1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still

Product Name:1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still
Capacity(L):1000L - 10000L Customizable
Weight(KGS):300Kgs - 3000Kgs
Heating Method:Electric, Steam,Gas. etc.
Power(KW):0.75KW - 18KW
Voltage(V):110V/220V/240V/380V
Material:SS304/SS316/TP2 Red Copper
Application:Brandy/Whisky/Vodka/Gin etc.
Certificate:CE, ATEX，IECEX

Still Pot:

1000 Liter Capacity

1.Working Capacity:1000L

2.Material:TP2copper+SUS304

3.Design:3-layer 4 4 2 pot with 1.1KW mixing motor,copper inner pot,SSU304 heating jacket,outside fish scale cladding.

4.Thickness:

①inner:4mm(TP2 copper)

② samdwich :4mm (sus304)

③external:2mm(sus304)

 5.Accessories:top manway, thermometer,safe valve,etc 6.Configuration:Thermometer

Plate Reflux Column:

1.Material:TP2copper

2.Thickness:3mm

3.Diameter:350mm

Dephlegmators:

1.Material:TP2copper

2.Thickness:3mm

3.Diameter:350mm

Gin Basket:

1.Material:TP2copper

2.Thickness:3mm

3.Diameter:350mm

Condenser:

1.Material:TP2copper

2.Thickness:3mm

3.Diameter:350mm

Parrot:

1.Material:TP2copper

Hard Piping:

304 Stainless Steel with DIN Connection

CIP Pump & Manifold:

1.Material:SUS304

2.Pump:1.5KW

Storage Tanks:

304 Stainless Steel

Under Support Frame



Detail

Detail of 1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still

  • Detail of 1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still
    01

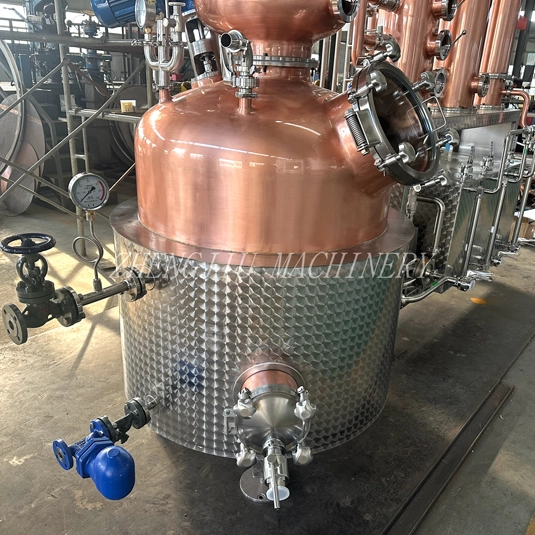

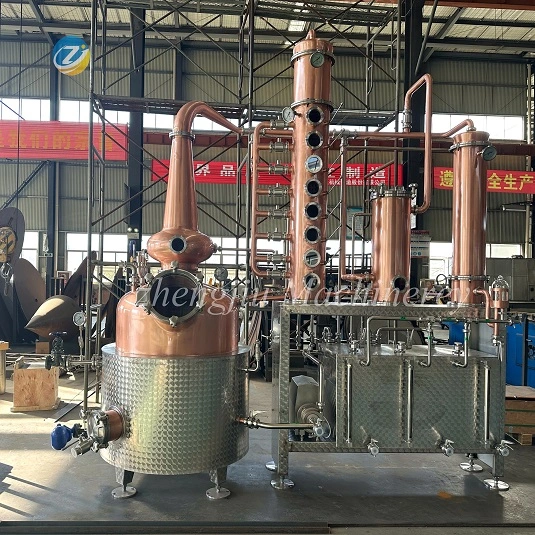

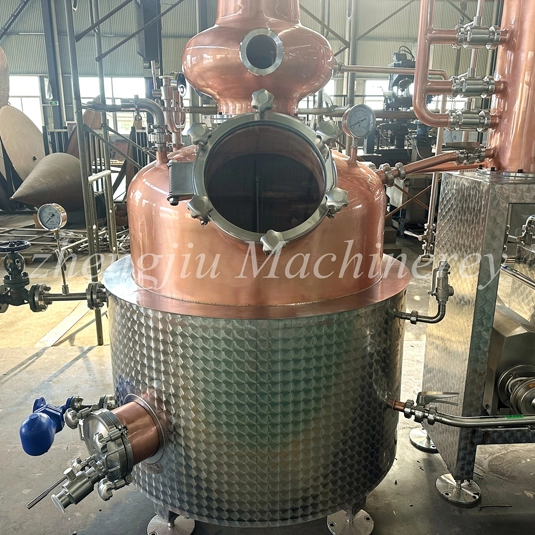

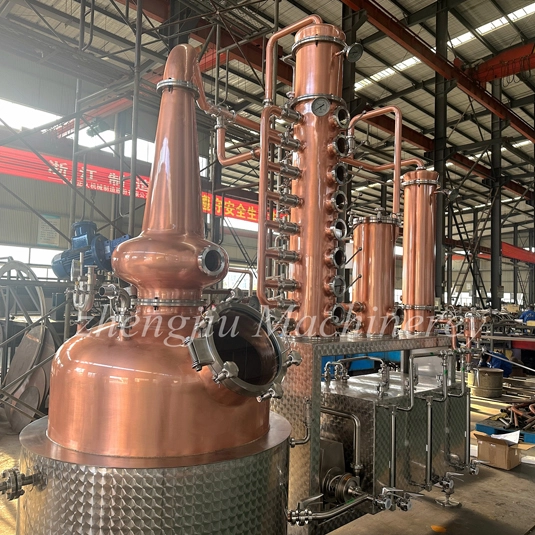

    Still Pot: copper inner tank, stainless steel cladding, with explosion proof agitator motor, full glass man-way

    Head :Copper Whisky helmet

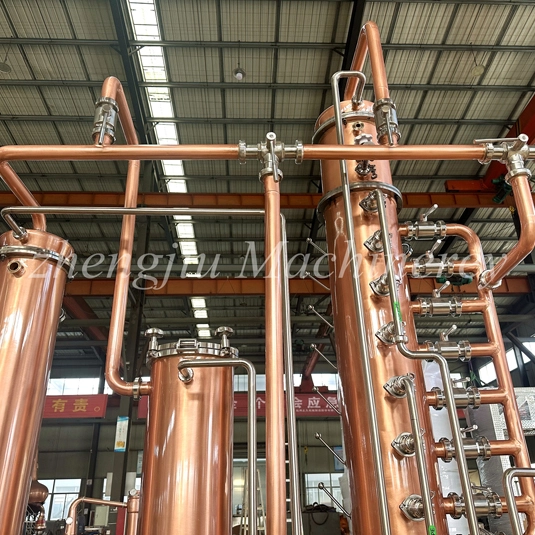

    Copper columns: copper made with 8 plates

    TP2 Copper condenser and pipes

    TP2 Copper Gin Basket

    Stainless steel 304 Support base

    Application: it can make sure you get function of distilling brandy,whisky,gin and vodka etc.


  • Detail of 1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still
    02

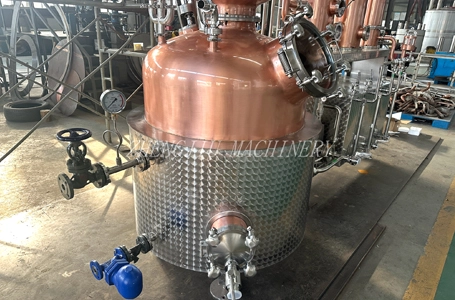

    Heating Method: steam heating or electric heating

    Use union or tri-clamps connection, easy to install and clean the distilling equipment after a run.

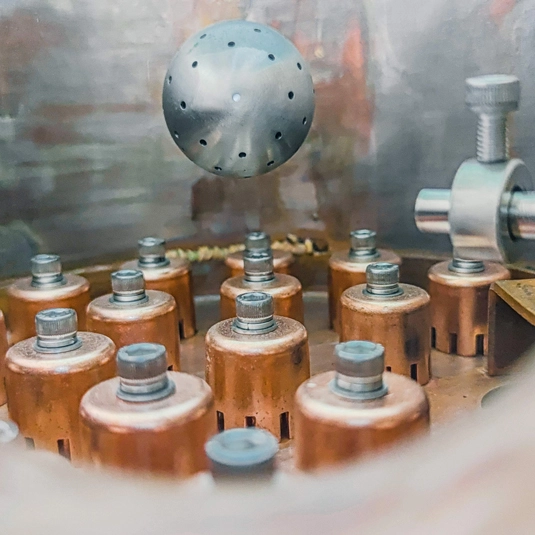

    Distillation column TP2 red copper column with 5 plate TP2 red copper bubble caps


  • Detail of 1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still
    03

    A Hybrid pot design is favored by many craft distillers. By combining the benefits of a Pot still and a Column still, maximum flexibility can be achieved. Typically, the entire fermented mash goes into the still; this is known as “distilling on grain.” The columns in these stills operate in the same way as continuous columns, by driving up the alcohol content, however each plate can generally be turned on or off allowing the distiller to manipulate the character of their spirit with more or less separation of congeners.


Features

Features of 1000L Copper Distillation Machine Distillery Equipment Distiller Distillation For Alcohol Still

01
01

Hybrid stills can be used to produce a variety of different spirits which is why they are becoming increasingly popular with craft distilleries. The ability to produce a neutral spirit and whiskey on a single still enables new distilleries to purchase the necessary equipment at a more affordable price, and still establish cash flow quickly while waiting for whiskey to age.



02
02

Hybrid stills also provide distillers with the opportunity to experiment with different spirits and techniques while developing new product lines.

1000L Copper Distillation Machine Distillery Equipment Advantages

  • High Production Capacity: With a customizable capacity ranging from 500L to 3000L, this distiller is suitable for both small-scale and large-scale production, meeting diverse operational needs.

  • Premium Material Construction: Constructed from high-quality materials such as SS304, SS316, and TP2 Red Copper, the distiller ensures durability and excellent heat conductivity, which enhances flavor extraction.

  • Flexible Heating Options: The machine supports both electric and steam heating methods, with power requirements between 6KW and 30KW, providing adaptability to various energy sources and operational preferences.

  • Versatile Spirit Production: Designed to produce a variety of spirits, including vodka, whiskey, and brandy, the distiller offers flexibility to craft different products to suit market demands.

  • Customizable Design: The distiller's design can be tailored to specific production requirements, allowing for adjustments in capacity, heating method, and other features to align with distillery goals.

These features collectively make the 1000L Distiller Machine a valuable asset for distilleries aiming to enhance production efficiency and product quality.

Why our 1000L Copper Distillation Machine Distillery Equipment Uses TP2 red copper and 304 stainless steel ?

  • Enhanced Thermal Conductivity: TP2 red copper is renowned for its excellent heat transfer properties, allowing for rapid heating and cooling. This ensures precise temperature control during distillation, leading to consistent and high-quality spirit production.

  • Flavor Purification: Copper's unique ability to react with sulfur compounds present in the distillate helps eliminate unwanted flavors and odors. This interaction results in a smoother and more refined spirit, enhancing the overall taste profile.

  • Structural Integrity and Durability: 304 stainless steel provides exceptional resistance to corrosion and mechanical stress. Incorporating this material in the distiller's construction ensures a longer lifespan and reduces maintenance requirements, offering a cost-effective solution for distilleries.

  • Ease of Maintenance: The non-porous surface of stainless steel simplifies the cleaning process, minimizing the risk of contamination and ensuring consistent product quality.


1000L Copper Distillation Machine Distillery Equipment ProcessPot_Still_Production_Process.png

1000L Copper Distillation Machine Distillery Equipment Process Accessories & Auxiliary Equipment



Comparison between our 1000L Copper Distillation Machine Distillery Equipment and Others



ZJ Distillery Equipment Exhibition and Installation Cases





Customer's Comments to ZJ Distillery Equipment
