Gin Still

Gin is a type of spirit characterized by the flavor of juniper berries. Gin makers produce gin by infusing a neutral spirit with botanical ingredients during the distillation process. For liquor to be classified as gin in the United States, it must contain at least 40 percent alcohol by volume (ABV).

Typically we configure a gin basket for the gin still, inside which the botanicals are placed. The alcoholic vapor will go through the gin basket, insusing the flavours.

  • Capacity: 300L , customizable

  • Material: Red copper TP2, SUS304

  • Dimensions: Pot Diameter: 1000mm, Height: 2600mm

Specification

Specification of Gin Still

Item No.

ZJGS-500L

Product name

300L gin still

Capacity

300L , customizable

Material

Red copper TP2, SUS304

Dimensions

Pot Diameter: 1000mm, Height: 2600mm

Thickness

Inner 3mm, jacket 4mm, outer cladding 2mm, other 3mm

Appication

To make gin, whisky or brandy


Detail

Detail of Gin Still

  • Detail of Gin Still
    How Gin Is Made?

    Gin makers follow a few basic steps to produce gin:

    • Combine the base ingredients: They mix dried grains like flaked maize and wheat malt with water and yeast, heating and stirring the mixture (often called “gin mash”) to prepare it for fermentation.

    • Ferment the base: The mixture is stored for one to two weeks to ferment, during which compounds break down to produce ethanol, a simple alcohol.

    • Strain the mixture: After fermentation, the liquid (ethanol) is strained from the solids, which are discarded.

    • Distill: The liquid is purified through distillation, where it is heated, vaporized, and recondensed. This process, which can be repeated multiple times for purity, results in a more alcoholic liquid. Botanicals may be added at various stages, either steeped in ethanol before or between distillations or added during distillation using a special still.


  • Detail of Gin Still
    How Gin Is Made?

    Gin makers follow a few basic steps to produce gin:

    5. Collect and sort the product. The liquid that gin makers have after distillation isn’t all the same because as ethanol distills, the resulting liquid changes. The first 35 percent of a distillation results in an ethanol product that contains methanol or acetone and can be highly volatile or toxic—containers of this liquid are called the “foreshots” and the “heads,” and distillers usually throw them out. The following 30 percent contains the “hearts,” which are the best, most usable product. The final 35 percent are the “tails,” which are impure but can be kept and redistilled for a little more product.

    6. Dilute. Once the distillers have their distilled product, they’ll dilute the gin to the desired alcohol content by testing the alcohol by volume (ABV) and gradually adding water. At this step, distillers making gin liqueur may add additional flavorings or sugar to create products like sloe gin, pink gin, or rhubarb gin.

    7. Bottle. The final step is the bottling process, in which gin makers add the final product to labeled bottles.



Features

Features of Gin Still

01
01

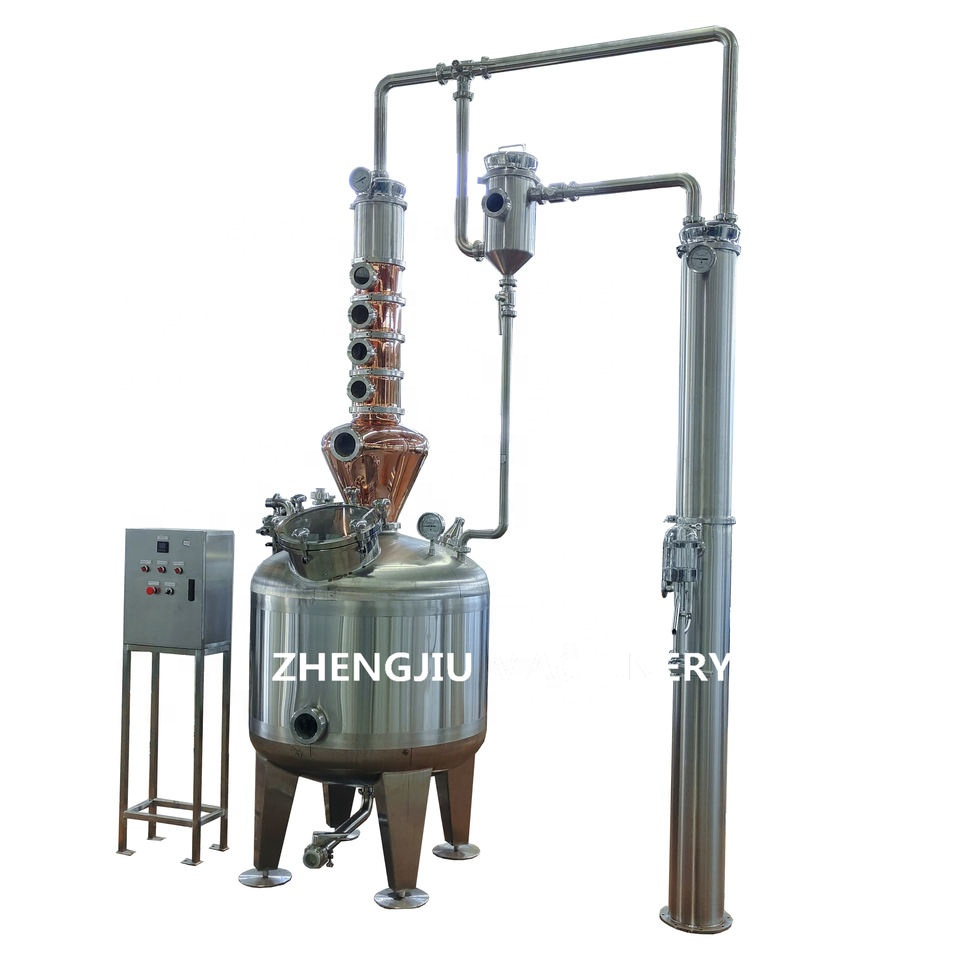

Detailed Configuration:

300L Copper Pot: Interior pot with water bath heating jacket, PU insulation, and SS304 outer wall

Copper Onion Helmet

Stainless Steel Gin Basket

Stainless Steel Condenser

Stainless Steel and Glass Parrot Outlet

Stainless Steel Frame

Electrical Controller

CIP Cleaning System


02
02

System Overview:

Ideal for producing gin, whiskey, and brandy

Single distillation yields 30%-35% ABV alcohol

Affordable and user-friendly

Simple maintenance with CIP system

Available in 304 stainless steel with fish scale or mirror finish
