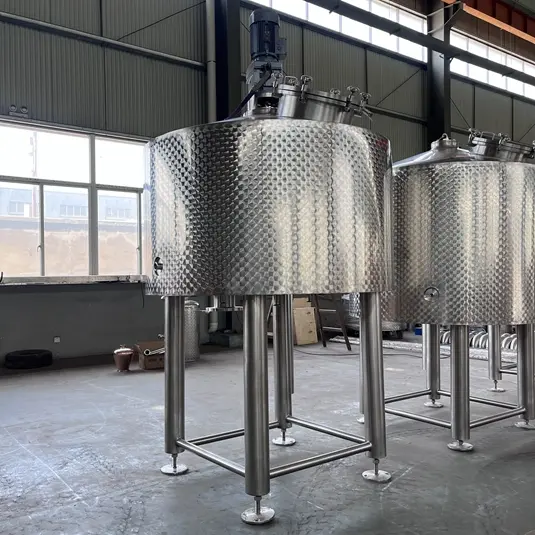

Mash Tun

Mashing is the process of combining a mix of grain and water and heating this mixture in a vessel called a "mash tun".

Main components: Inner tank, heating jacket & insulation, mixer agitation, heating elements, manway, CIP spray, PRV, valves.

Capacity: 500L, customizable (100L to 10000L are available)
Material: SUS304 or SUS316
Dimensions: Diameter: 1200mm, Height: 2100mm

Specification Detail Features

Specification

Specification of Mash Tun

Item No.	ZJ-500MT01
Product name	Mash tun (mash/ lauter tun)
Capacity	500L, customizable (100L to 10000L are available)
Material	SUS304 or SUS316
Heating way	Electric heating or steam heating
Voltage	200v, 208V, 220V, 240V, 380V, 400V, 415V, (customizable)
Control	Muannal control
Dimensions	Diameter: 1200mm, Height: 2100mm
Thickness	Inner tank: 3mm, outer shell: 2mm, insulation: 80mm
Application	Mashing process

Detail

Detail of Mash Tun

01
- Inner-Jacket Material (SUS304), Thickness: 3.0mm
- External-Jacket Material (SUS304), Thickness: 2.0mm
- Insulation layer: Rockwool-thickness: 80mm
- Top manhole: 300mm*400mm
- Electrical heating or steam heating
- With Variable speed motor and extra Reducer (CE Approved)
- Equipped with side manway
02
- The Agitator in the Mash kettle equipped with Frequency converter to be speed controlled, during whirlpool, it can be lifted to upper by a hook and fixed with a chain.
- Equipped with one 360° saturation CIP with rotating spraying ball.
- Temperature Control Method: PT100
- Interior finish: polishing to 0.4μm without edges

Features

Features of Mash Tun

It combines the function of a mash tun and a lauter tun, so we can save the equipment cost.

The internal 2B surface of the equipment has undergone acid pickling and passivation treatment, and the welds have undergone fine treatment without any unevenness or deformation.

The external surface is treated with wire drawing, the equipment has a beautiful appearance, and the pipeline layout and opening positions meet the requirements of operation and on-site installation.
